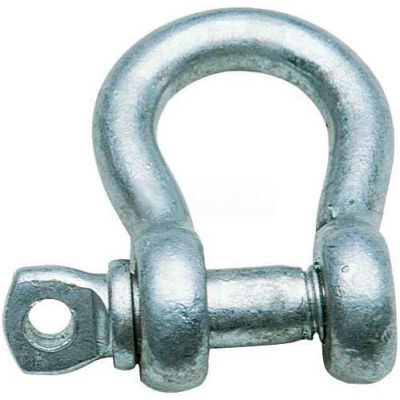

Elite sales galvanized screw pin anchor shackle - 5/8"
Our screw pin anchor shackles meet the performance requirements of federal specification rr-c-271d type iva, grade a, class 2, except for those provisions required of the contractor. Working load limit permanently shown on every shackle.
Our screw pin anchor shackles meet the performance requirements of federal specification rr-c-271d type iva, grade a, class 2, except for those provisions required of the contractor. Working load limit permanently shown on every shackle.
- Capacity lbs. 6500
- Color finish Galvanized
- Brand Elite sales
- Construction Galvanized steel
- Dimension a 5/8"
- Dimension b 3/4"
- Dimension c 2.44"
- Dimension d 1.06"
- Dimension e 1.56"
- Dimension f 1.69"
- Inner width 1.69"
- Limited warranty 30 days for material
- Manufacturers part number Hg58spas
- Material diameter - chain size 5/8"
- Overall length 2.44"
- Package quantity 10
- Pin diameter inches 3/4
- Style Galvanzied screw pin anchor shackle
- Weight lbs. 1.44
