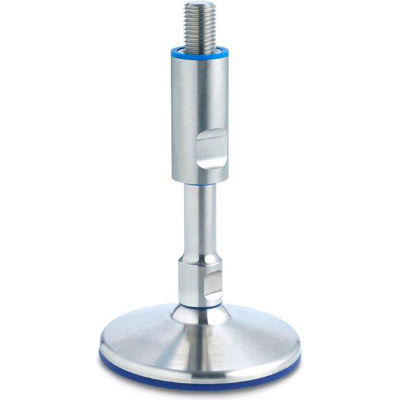

Hygenic design leveling foot without mounting holes - m24 x 235mm - j.W. Winco 20-100-m24-235-a leveling feet without mounting holes are certified according to 3-a sanitary standard inc. Guidelines and are intended for use in hygiene areas.
- The bottom seal protects the area beneath the foot plate from dirt
- For this, the foot must be pressed down by the weight of the machine
- The sealing ring above the adjustment sleeve enables fastening without dead space
- Due to the wiper or the ball seal, the moving components are sealed against the environment
- The high quality finish prevents adherence of dirt and facilitates cleaning
- Specifications:
- Threaded stud, adjustable sleeve, base plate: stainless steel, european standard no
- 1.4301 (aisi 304), turned sealing ring: nbr, hardness 70 �5 shore a wiper: tpu, hardness 95 �5 shore a joint sealing ring: h-nbr, hardness 85 �5 shore a bottom seal: silicon, hardness 85 �5 shore a
- Country of origin Import
- Thread size M24
- Load capacity 15062 lbs.
- Series Gn20
- Unit of measurement Metric
- Brand J.W
- Winco
- Foot diameter 100mm
- Manufacturers part number 20-100-m24-235-a
- Style Without mounting holes
- Height 235mm
- Description Hygenic design leveling foot
