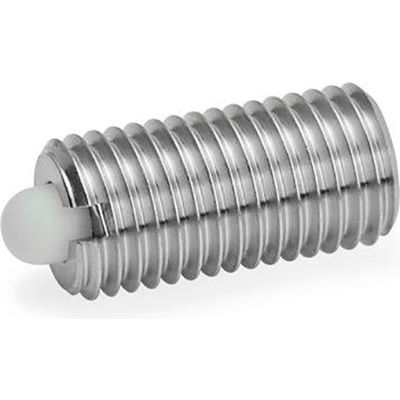

Gn 616 spring plungers are used as locating devices, detent pins, pressure pins and ejectors. A typical example is push-on / push-off applications. The slot on the nose pin side is provided for blind hole applications.
- Initial spring load newtons are 12
- Ending spring load newtons are 53.
- Finish Natural
- Type Spring plunger
- Package quantity 1
- Country of origin Import
- W inches 0.16
- Color finish Silver
- Thread size M12 x 1.75
- Construction Plastic
- Series Gn616
- Brand J.W
- Winco
- Manufacturers part number 616-m12-kn
- Body diameter inches 0.24
- A/f inches 0.16
- Length inches 1.1
- Description Threaded body
