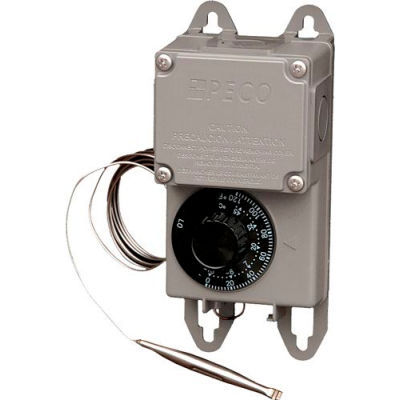

Peco industrial temperature controller trf115-005 temperature range 0°-120°f remote bulb with nema 4x enclosure
Features:
Features:
- T115 thermostat offers one control for heating or cooling
- Its nema 4x enclosure complies with n.E.C. Article 547
- The stainless steel remote sensing bulb and capillary provides rapid response to temperature change
- Featuring spdt switches it delivers reliable temperature control for industrial, commercial, and agricultural applications
- 1 heat, 1 cool stage
- 1 year warranty
Product details
- Bulb 5 foot stainless remote
- Switch action Spdt
- Voltage 277 / 240 / 208 / 120 / 24 v
- Amps @ 277v 110 amp fla; 50a lra; 22 amp non-inductive; 125 va pilot duty a
- Power type Hardwired
- Temperature control range 0 to 120 °f
- Amps @ 208v 13.2 amp fla; 66a lra; 25 amp non-inductive; 125 va pilot duty a
- Type Mechanical
- For use with Refrigeration / industrial / agricultural
- Differential temperature 3 °f
- Brand Peco
- Stages Single
- Temperature operating range 0 to 120 °f
- Warranty 1 yr
- Manufacturers part number Trf115-005
- Amps @ 120v 16 amp fla; 80a lra; 25 amp non-inductive; 125 va pilot duty a
- Amps @ 240v 12 amp fla; 60a lra; 25 amp non-inductive; 125 va pilot duty a
Weights & dimensions
- Physical dimensions 3.1"w x 6.5"h x 2.5"d
- Bulb size 2-5/16 in
- Capillary length 5 ft
Compliance & certifications
- Nema rating 4x
- Certifications Ul, csa
