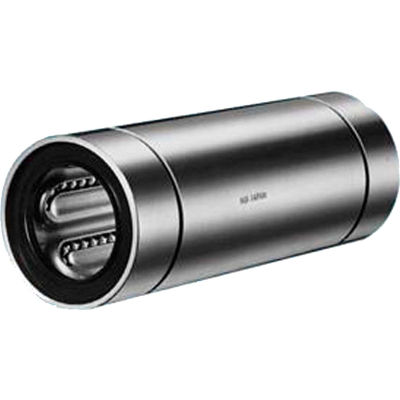

Nb corp sw12gwuu dble wide closed linear bearing w/resin retainer & seals, 3/4"id, steel
The slide bush is a linear motion mechanism that uses recirculating ball elements to achieve smooth motion and low friction.
The slide bush is a linear motion mechanism that uses recirculating ball elements to achieve smooth motion and low friction.
- Id 3/4
- L 3.0937
- L tolerance 0-0.012"
- Od 1-1/4
- Dynamic rating (lbf) 307.99
- W 0.0559
- Description Double wide closed linear bearing w/resin retainer & seals
- Groove length 0.0559"
- Number of ball circuits 5
- D 0-0.00075"
- Dr tolerance 0-0.0005"
- Brand Nb corporation
- Material Steel
- Manufacturers part number Sw12gwuu
- B 2.3314
- Static load rating lbs 615.97
