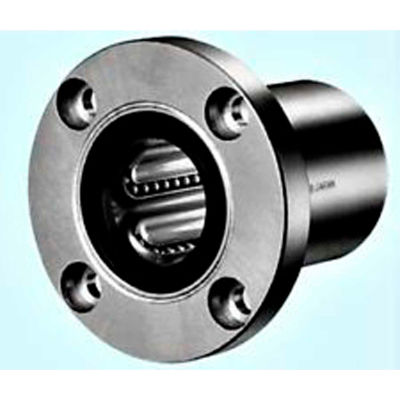

Nb corp swf8guu 1/2" id round flange type linear bearing w/resin retainer & seals, steel
The slide bush is a linear motion mechanism that uses recirculating ball elements to achieve smooth motion and low friction.
The slide bush is a linear motion mechanism that uses recirculating ball elements to achieve smooth motion and low friction.
- Id 1/2
- L 1.25
- D tolerance 0-0.00065"
- Description Round flange type linear bearing w/resin retainer & seals
- Df 1.75"
- Flange p.C.D. 1.312"
- Dr 0.5"
- X x y x z .1875" x .2970" x .1720"
- Dynamic load lbs. 114.65
- Number of ball circuits 4
- T .25"
- D 0.875"
- Dr tolerance 0-0.0004"
- Brand Nb corporation
- Material Steel
- Manufacturers part number Swf8guu
- Static load lbs. 176.25
