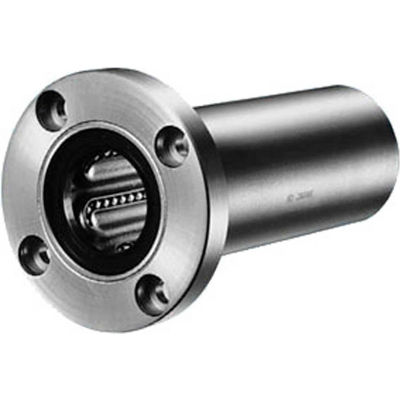

Nb corp swsf16wuu 1" id round flange double-wide type linear bearing w/seals, stainless steel
The slide bush is a linear motion mechanism that uses recirculating ball elements to achieve smooth motion and low friction.
The slide bush is a linear motion mechanism that uses recirculating ball elements to achieve smooth motion and low friction.
- Id 1
- L 4.2813
- D tolerance 0-0.00075"
- Description Round flange double-wide type linear bearing w/seals
- Df 2.5"
- Flange p.C.D. 2.031"
- Dr 1"
- X x y x z .2188" x .3438" x .2031"
- T .3125"
- Dynamic load lbs. 352.95
- Number of ball circuits 6
- D 1.5625"
- Dr tolerance 0-0.0005"
- Brand Nb corporation
- Material Stainless steel
- Manufacturers part number Swsf16wuu
- Static load lbs. 705.9
