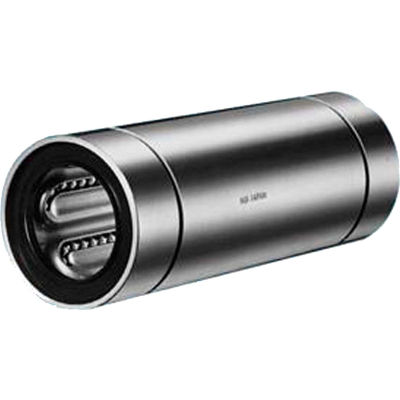

Nb corp sw32gw dble wide closed linear bearing w/resin retainer & seals, 2"id, steel
The slide bush is a linear motion mechanism that uses recirculating ball elements to achieve smooth motion and low friction.
The slide bush is a linear motion mechanism that uses recirculating ball elements to achieve smooth motion and low friction.
- Id 2
- L 7.75
- L tolerance 0-0.016"
- Od 3
- Dynamic rating (lbf) 1366.83
- W 0.1029
- Description Double wide closed linear bearing w/resin retainer & seals
- Groove length 0.1029"
- Number of ball circuits 6
- D 0-0.001"
- Dr tolerance 0-0.0006"
- Brand Nb corporation
- Material Steel
- Manufacturers part number Sw32gw
- B 6.3834
- Static load rating lbs 3574.46
