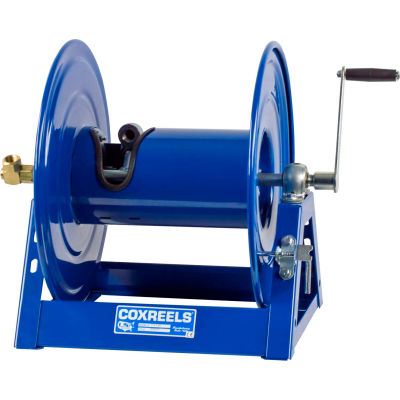

Coxreels 1125-5-175 competitor series 3/4"x175' 3000 psi hand crank steel hose reel
Coxreels® 1125 series hand crank and motorized hose reels have the features demanded by industry professionals. The industry preferred design features a sturdy one piece all welded "a" frame base, low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
External fluid path with machined from solid brass 90° full-flow npt swivel inlet (nickel plated steel swivel on 1" models) swivel seals: nitrile (aflas on 1" models) ~external fluid path with electroless nickel plated steel 90° full-flow npt swivel inlet (on high pressure hp prefix models) swivel seals: aflas (on high pressure hp prefix models)
All welded steel "a" frame construction for superior reel structure exclusive low profile outlet riser & open drum slot design for flat smooth hose wrap permanently lubricated self-aligning pillow block bearings for trouble-free & smooth rotation adjustable tension brake to prevent "free-wheeling" during operation long-handled locking pin to secure reel from rotation during transport or storage
Reliable direct gear drive on motor driven models providing quiet & smooth retraction - no chain solid steel direct hand crank with smooth round handle
Features:
Coxreels® 1125 series hand crank and motorized hose reels have the features demanded by industry professionals. The industry preferred design features a sturdy one piece all welded "a" frame base, low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
External fluid path with machined from solid brass 90° full-flow npt swivel inlet (nickel plated steel swivel on 1" models) swivel seals: nitrile (aflas on 1" models) ~external fluid path with electroless nickel plated steel 90° full-flow npt swivel inlet (on high pressure hp prefix models) swivel seals: aflas (on high pressure hp prefix models)
All welded steel "a" frame construction for superior reel structure exclusive low profile outlet riser & open drum slot design for flat smooth hose wrap permanently lubricated self-aligning pillow block bearings for trouble-free & smooth rotation adjustable tension brake to prevent "free-wheeling" during operation long-handled locking pin to secure reel from rotation during transport or storage
Reliable direct gear drive on motor driven models providing quiet & smooth retraction - no chain solid steel direct hand crank with smooth round handle
Features:
- Professional grade heavy duty steel construction. Durable proprietary cpc™ powder coat process.
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer's limited warranty
- Made in the u.S.A
- - Sold & supported worldwide
- Swivel - machined from solid brass 90° full-flow npt swivel for simple seal maintenance and fast and easy hose installation
- No need to remove the reel from its mount.
- Cnc spun discs - heavy duty cnc robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
- Outlet riser - exclusive low profile outlet riser and open drum slot design provides a non-cimping, flat smooth hose wrap.
- "A" frame - sturdy one piece, all cnc robotically welded 12 gage steel "a" frame base, not bolted, for superior reel structure
- Mounting pattern located in the steel base for easy reel installation and detachment.
- Permanently lubricated bearings - sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation
- Other features include - long lasting, chip resistant and rust inhibiting cpc powder coat finish, adjustable tension brake prevents free wheeling and direct hand crank for easy mechanical retraction.
- Permanently lubricated self aligning pillow block bearings
- Length inches 17-1/2
- Width inches 33-1/4
- Height inches 18-1/8
- Series 1125
- Weight lbs 44
- Cable/cord/hose included No
- Drive / return type Hand crank
- Hose/ cord length feet 175
- Psi 3000
- Manufacturers part number 1125-5-175
- Open or enclosed chassis Open
- Hose id" 3/4
- Manufacturers limited warranty years 2
- Color finish Blue
- Construction Steel
- Type Hose reel
- Brand Coxreels
- Reel hose/cable length capacity feet 175
