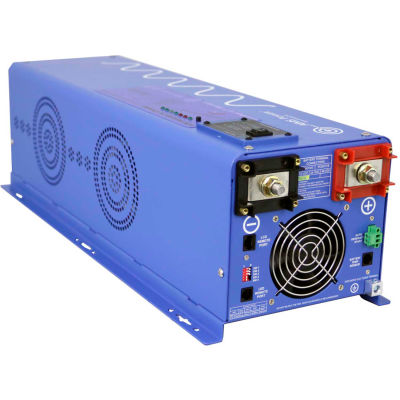

Aims power 6000 watt inverter charger 48vdc to 120vac, picoglf60w48v120v
Built for large 120 volt ac load demands, this 6000 watt pure sine inverter is able to output one single leg of 120vac power at the full rated 6000 watts. This inverter is a 48vdc input, meaning the inverter will be more efficient and smaller dc cables can be used compared to 12vdc or 24vdc systems. This inverter also features a built in smart battery charger and automatic transfer switch, for accepting utility or generator power.
Built for large 120 volt ac load demands, this 6000 watt pure sine inverter is able to output one single leg of 120vac power at the full rated 6000 watts. This inverter is a 48vdc input, meaning the inverter will be more efficient and smaller dc cables can be used compared to 12vdc or 24vdc systems. This inverter also features a built in smart battery charger and automatic transfer switch, for accepting utility or generator power.
- For large startup needs, the inverter has a 300% surge capacity for up to 20s so pumps, motors and compressors may be started up without overloading the inverter
-
Features:- 6000 watt low frequency inverter 110 vac single phase
- 18000 watt surge for 20 seconds -3x surge capability
- Battery priority selector
- Terminal block
- Marine coated and protected
- Multi stage smart charger 80 amp
- Remote panel available
- Auto gen start
- 60hz or 50 hz selectable dip switch
- 10msec typical transfer time
- Optional 25w power save mode
- 7 battery type settings for charger
Inverter output specifications:- Continuous output power: 6000 watts
- Surge rating: 18000 watts (20 seconds)
- Output waveform: pure sine/same as input (bypass mode)
- 100-110-120vac
- Nominal efficiency: >88% (peak)
- Line mode efficiency: >95%
- Output frequency: 50hz +/- 0.3hz / 60hz +/- 0.3hz
- Typical transfer time: 10ms (max)
- Thd: < 10% dc
Input specifications:- Nominal input voltage: 48.0vdc
- Low battery alarm: 42.0vdc-44.0vdc
- Low battery trip: 40.0vdc-42.0vdc
- High voltage alarm: 64.0vdc
- Low battery voltage restart: 62.0vdc
- Idle consumption: 4.16 amps dc
- Power saver mode idle consumption: <0.83 amps dc
Charger specifications:- Output voltage: depends on battery type
- Charger rate: 45a
Dimensions- Unit weight: 154 lbs
- Unit size l x w x h: 19.3 x 16.3 x 7.9 inches
- Shipping weight: 184 lbs
- Shipping l x w x h 26 x 21.3 x 16.1 inches
Product details
- Dc input voltage 48 vdc
- Outlet socket type Direct wire terminal block
- Internal fuse protection No
- Surge watts 18000 w
- Brand Aims power
- Continuous output power 6000 w
- No load current Idle consumption: 1.67 amps dc, power saver mode idle consumption: <0.83 amps dc a
- Manufacturers part number Picoglf60w48v120v
- Output voltage 120 vac v
Weights & dimensions
- Width 16.3 in
- Length 19.3 in
- Height 7.9 in
- Weight 88 lbs
