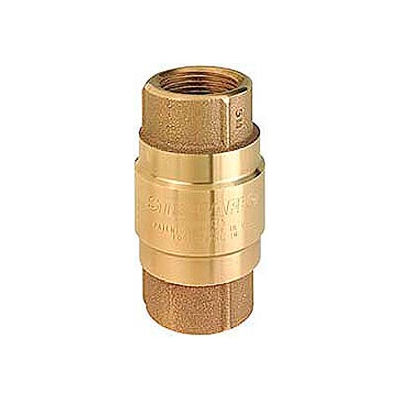

1-1/2" fnpt in-line brass check valve with buna-n rubber poppet. The unique poppet design is more durable than an o-ring, because of its solid steel internal insert. Product is made in the usa.
- Maximum working pressure 200 psi, maximum temperature 225°f, cracking pressure 1-2 lbs
- For use with oil, diesel fuel, kerosene, mineral oil, alcohol, and hydraulic fluids
- Not for air compressor use.
- Approvals or certifications --
- Color finish Bronze
- Length inches 4.88
- Package quantity 1
- Size 1-1/2"
- Valve type Check
- Weight lbs 2.45
- Maximum temperature 225°f
- Brand Strataflo
- Connection size inches 1-1/2
- Connection type Female npt
- Diameter inches 2.69
- Construction Brass
- Description Buna-n rubber poppet
- Cracking pressure lbs 1 - 2
- Working pressure lbs 200
