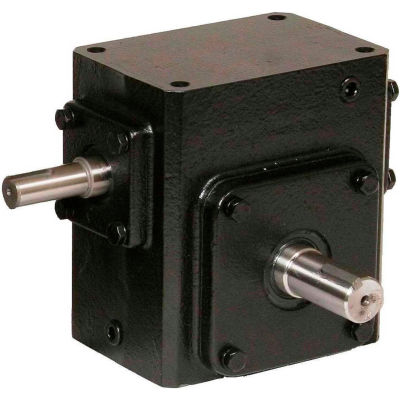

Worldwide hdrs133-15/1-r cast iron right angle worm gear reducer 15:1 ratio cast iron worm gear reducers are available in center distances 1.33 - 3.25 inches in ratio's from 5:1 to 60:1. The units have a one piece #fc20 all cast iron housing, nema motor quill style input flanges or shaft inputs, come pre-filled with synthetic oil and have a 1 year warranty. Features:
- Tapered roller bearings on the input and output shafts embedded double-lip oil seals anti-rust primer applied inside and outside of the gearbox air dry special black paint
- Output speed (rpm) 120
- Overhung load lbs. 300
- Efficiency 80
- Gear ratio 15:1
- Wcd center inches 1.33
- Max torque (in-lbs.) 283
- Max input hp 0.63
- Output shaft thrust load (lbs.) 300
- Description Cast iron right ange worm gear reducer
- Backlash (ft.) (Angular minutes) 27
- Manufacturers part number Hdrs133-15/1-r
- Cross reference Boston 713; grove b213
- Brand Worldwide electric corporation
