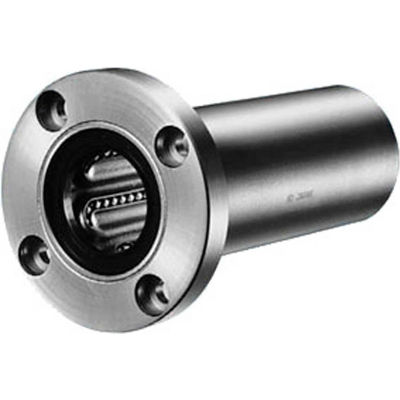

Nb corp swf6gw 3/8" id round flange double-wide type linear bearing w/resin retainer, steel the slide bush is a linear motion mechanism that uses recirculating ball elements to achieve smooth motion and low friction.
- Id 3/8
- L 1.5938
- D tolerance 0-0.00065"
- Description Round flange double-wide type linear bearing w/resin retainer
- Df 1.5"
- Flange p.C.D. 1.062"
- Dr 0.375"
- X x y x z .1875" x .2969" x .1719"
- T .25"
- Dynamic load lbs. 79.35
- Number of ball circuits 4
- D 0.625"
- Dr tolerance 0-0.0004"
- Brand Nb corporation
- Material Steel
- Manufacturers part number Swf6gw
- Static load lbs. 141.62
