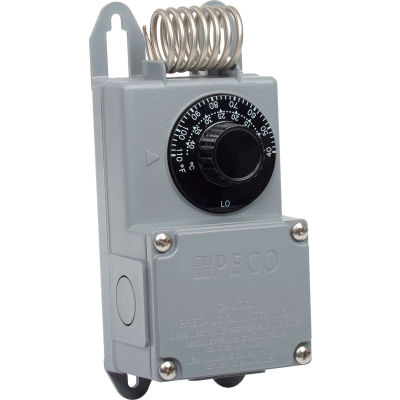

Peco industrial coiled temperature controller tf115-001 temperature range 40°-110°f with nema 4x enclosure features:
- T115 thermostat offers one control for heating or cooling its nema 4x enclosure complies with n.E.C. Article 547 the low mass, high surface area of stainless steel coiled sensor provides rapid response to temperature change featuring spdt switches delivers reliable temperature control for industrial, commercial, and agricultural applications 1 heat, 1 cool stage 1 year warranty
- Bulb Coiled air - stainless
- Switch action Spdt
- Voltage 277 / 240 / 208 / 120 / 24 v
- Amps @ 277v 110 amp fla; 50a lra; 22 amp non-inductive; 125 va pilot duty a
- Power type Hardwired
- Temperature control range 40 to 110 °f
- Amps @ 208v 13.2 amp fla; 66a lra; 25 amp non-inductive; 125 va pilot duty a
- Type Mechanical
- For use with Refrigeration / industrial / agricultural
- Differential temperature 3 °f
- Brand Peco
- Stages Single
- Temperature operating range 40 to 110 °f
- Warranty 1 yr
- Manufacturers part number Tf115-001
- Amps @ 120v 16 amp fla; 80a lra; 25 amp non-inductive; 125 va pilot duty a
- Amps @ 240v 12 amp fla; 60a lra; 25 amp non-inductive; 125 va pilot duty a
- Physical dimensions 3.1"w x 6.5"h x 2.5"d
- Capillary length Coiled capillary ft
- Nema rating 4x
- Certifications Ul, csa
