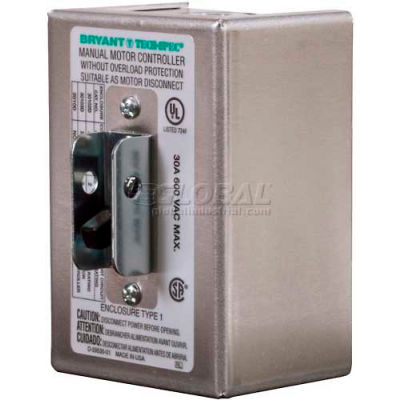

Nema 1 enclosed switch motor controllers are ideal for use in industrial environments, i.E. Conveyer systems, industrial fans, etc.
- Brand Bryant
- Max voltage 600v ac rms
- Electrical life 6,000 cycles at rated switch load
- Dielectric voltage 2,200v ac minimum for 1 minute
- Box enclosure Nema 1 aluminum
- Amps 30
- Short circuit withstand rating as motor disconnect 60a max j fuses 10,000 rms
- Ul listing Ul 508 industrial control equipment file # e70402
- 600v ac 15
- 480v ac 10
- 240v ac 5
- Terminal torque 20 inch pounds
- Terminal accomodations Awg min. #14 - awg max.
- #10
- Flammability Ul94hb/vo
- Depth inches 2.41
- Csa listing Csa-c22.2 no
- 14 industrial control equipment file # lr-46186
- 120v ac 2
- Product type Motor control sw t
- Poles 2
- Weight lbs 1.05
- Length inches 4.72
- Width inches 3.2
- Phase 1
- Operating temperatures Max
- Continuous 60 deg
- C., Min
- Continuous w/out impact -40 deg c.
- Short circuit withstand rating as motor controller 125a max rk5 fuses
