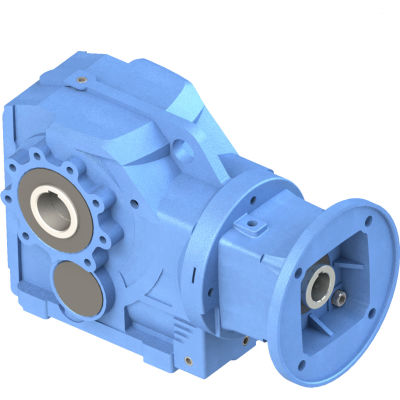

Wwe kan77-30/1-h-184tc, cast-iron helical bevel speed reducer; 184tc input flange, 30/1. Cast-iron, helical bevel speed reducers are available in box sizes 37-97 to support 1/4 hp to 30 hp nema frame motors in speed ratio's from 5:1 to 120:1. The units have nema motor quill style input flanges and standard hollow output bores, come pre-filled with mineral oil and have a 2 year warranty.
- Special features include ball bearings on the input and output shafts and precision ground gears for better rotation and quieter operation
- The kan style comes standard with b14 mounting
- Torque arm mount and b5 flange mounts are available as separate accessories
- Single shaft and double shaft output kits are also available.
- Output speed (rpm) 57
- Overhung load lbs. 2020
- Max input hp 10.97
- Max torque (in-lbs.) 10915
- Box size 77
- Cross reference Sew ka/kf77
- Manufacturers part number Kan77-30/1-h-184tc
- Brand Worldwide electric corporation
- Nema frame 184tc
- Gear ratio 30
- Actual gear ratio 30.48
- Gear stages 3
