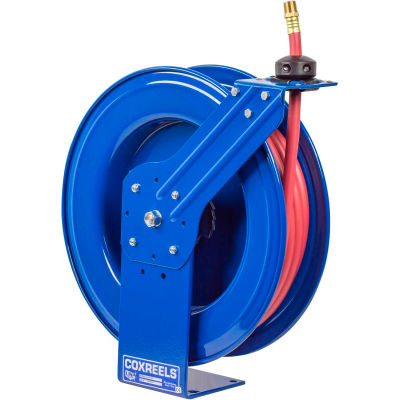

Coxreels sh-n-550 3/4"x50' 300 psi heavy duty spring retractable low pressure hose reel coxreels® sh series "super hub™" spring driven hose reels, like the p series, have a long history of dependable performance. The larger chassis and frame accommodate longer lengths and larger diameters of hose. Coxreels' original super hub™ dual axle support system increases the stability during operation, reduces vibration and strengthens the structural integrity of the reel.
- External fluid path with machined from solid brass 90° full-flow npt swivel inlet
- Swivel seals: nitrile sturdy single pedestal reel features coxreels' exclusive super hub™ dual axle support system
- Guide arm adjusts to wall, floor, vehicle & overhead positions
- Solid one piece, heavy gauge 1/4" steel base and support post for maximum stability
- 1" solid steel axle and lubricated precision bearings for smooth rotation
- Enclosed factory tuned and matched cartridge-style spring motor
- Non-corrosive stainless steel spring, pawl and zinc plated ratchet
- Multi-position lock ratchet mechanism secures hose at desired length
- Features:
- Professional grade heavy duty steel construction
- Durable proprietary cpc™ powder coat process
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer's limited warranty
- Made in the u.S.A
- - Sold & supported worldwide swivel - machined from solid brass 90° full-flow npt swivel for simple seal maintenance and fast and easy hose installation
- No need to remove the reel from its mount
- Cartridge motor - lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance
- Cnc spun discs - heavy duty cnc robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety
- 1/4" steel base - sturdy single pedestal design with solid one piece steel base
- Length inches 24
- Width inches 9-3/4
- Height inches 25-1/2
- Series Sh
- Weight lbs 69
- Application Air,water,chemical
- Cable/cord/hose included Yes
- Style Open chassis
- Drive / return type Spring return
- Temperature range°f -15 to 150
- Hose/ cord length feet 50
- Psi 300
- Reel hose length capacity (feet) 50
- Manufacturers part number Sh-n-550
- Open or enclosed chassis Open
- Hose id" 3/4
- Manufacturers limited warranty years 2
- Color finish Blue
- Construction Steel
- Max
- Temperature°f 150
- Inlet 3/4"
- Type Hose reel
- Brand Coxreels
- Hose material Pvc
