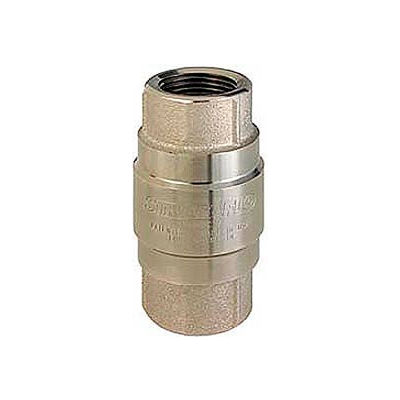

3/4" fnpt in-line nickel-plated brass check valve with stainless steel poppet. The model 2400 uses a stainless steel poppet for a metal-to-metal seal without the use of an o-ring. It also features a nickel-plated valve body inside and out, with all internal components of stainless steel.
- Product is made in the usa
- Maximum working pressure 200 psi, maximum temperature 300°f, cracking pressure 1-2 lbs
- For use in food and beverage applications, steam, and biodiesel
- Not for air compressor use.
- Color finish Nickel
- Length inches 3-5/16
- Package quantity 1
- Size 3/4"
- Valve type Check
- Weight lbs 0.90
- Maximum temperature 300°f
- Brand Strataflo
- Connection size inches 3/4
- Connection type Female npt
- Diameter inches 1.62
- Construction Nickel-plated brass
- Description Stainless steel poppet
- Cracking pressure lbs 1 - 2
- Working pressure lbs 200
