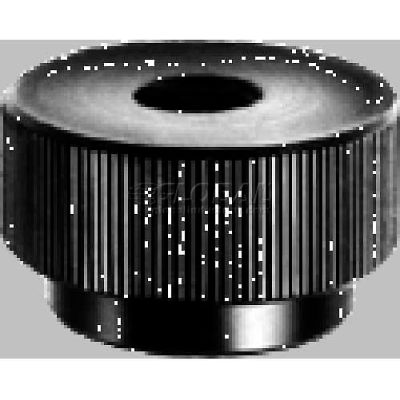

J.W. Winco gn6303.1 quick release knurled nuts, 17"(.67), m8 x 1.25 quick release knurled nuts gn 6303.1 are used in such applications where the nut has to be completely removed after the releasing operation and refitted very rapidly for re-clamping. The nut is tilted over the threaded spindle.
- When in position, the nut is brought into a straight position for meshing of the two threads on nut and spindle
- The nut will then have to be turned only by a fraction of a rotation to achieve clamping.
- Dimension k 12mm(.47")
- Material Stainless steel
- Brand J.W
- Winco
- D1 tapped M8 x 1.25
- Type Quick release knurled nuts
- Finish Black oxide
- D3 20mm(.79")
- Manufacturers part number 8nf47
- Dimension - h 17mm(.67")
- Series Gn6303.1
- D2 30mm(1.18")
- D4 8.7mm(.34")
