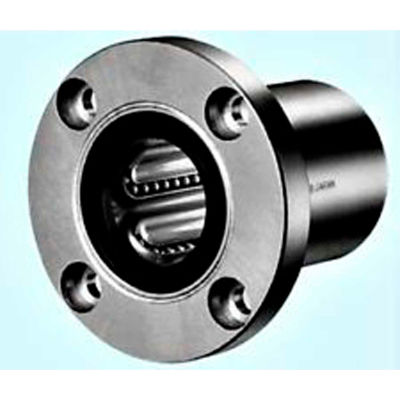

Nb corp swsf6uu 3/8" id round flange type linear bearing w/seals, stainless steel the slide bush is a linear motion mechanism that uses recirculating ball elements to achieve smooth motion and low friction. This bearing has a 0.5° self alignment feature.
- Id 3/8
- L .875
- D tolerance 0-0.00065"
- Description Round flange type linear bearing w/seals
- Df 1.5"
- Flange p.C.D. 1.062"
- Dr 0.375"
- X x y x z .1875" x .2970" x .1720"
- T .25"
- Dynamic load lbs. 50.58
- Number of ball circuits 4
- D 0.625"
- Dr tolerance 0-0.0004"
- Brand Nb corporation
- Material Stainless steel
- Manufacturers part number Swsf6uu
- Static load lbs. 70.59
