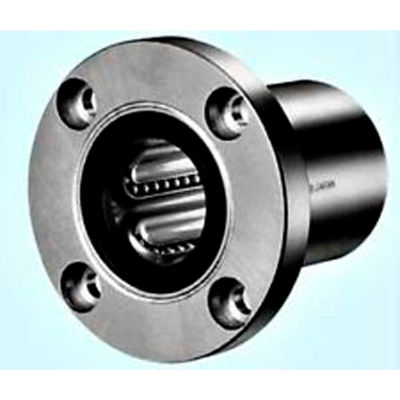

Nb corp swf20g 1-1/4" id round flange type linear bearing w/resin retainer, steel the slide bush is a linear motion mechanism that uses recirculating ball elements to achieve smooth motion and low friction.
- Id 1-1/4
- L 2.625
- D tolerance 0-0.0009"
- Description Round flange type linear bearing w/resin retainer
- Df 3.125"
- Flange p.C.D. 2.5625"
- Dr 1.25"
- X x y x z .2812" x .4060" x .2656"
- T .375"
- Dynamic load lbs. 352.95
- Number of ball circuits 6
- D 2"
- Dr tolerance 0-0.0005"
- Brand Nb corporation
- Material Steel
- Manufacturers part number Swf20g
- Static load lbs. 615.97
