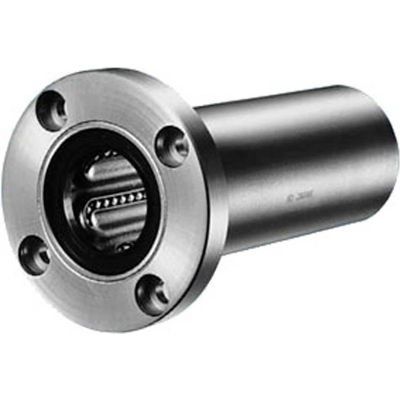

Nb corp swf10wuu 5/8" id round flange double-wide type linear bearing w/seals, steel the slide bush is a linear motion mechanism that uses recirculating ball elements to achieve smooth motion and low friction.
- Id 5/8
- L 2.8125
- D tolerance 0-0.00065"
- Description Round flange double-wide type linear bearing w/seals
- Df 2"
- Flange p.C.D. 1.562"
- Dr 0.625"
- X x y x z .1875" x .2969" x .1719"
- T .25"
- Dynamic load lbs. 276.51
- Number of ball circuits 4
- D 1.125"
- Dr tolerance 0-0.0004"
- Brand Nb corporation
- Material Steel
- Manufacturers part number Swf10wuu
- Static load lbs. 528.3
