Features:
- Toggle clamp: case-hardened sheet metal (steel c10) zinc plated blue passivated finish zinc plated steel rivets in case-hardened bushings have bearing spots greased open twin-arm and horizontal base hand grip: high quality oil resistant red plastic supplied complete with catch

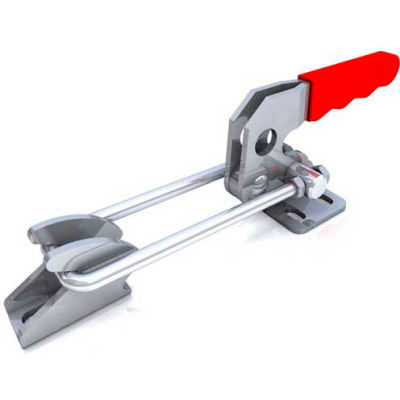

- Description Toggle clamp
- Material Hardened sheet metal
- Brand J.W. Winco
- Base type Vertical
- Style Latch
- R 78, (3.07)
- S 3, (.12)
- M1 25.5, (1.01)
- M3 19, (.75)
- M2 8.5, (.33)
- M5 20.5, (.81)
- M4 10.5, (.41)
- B5 22, (.87)
- B4 37, (1.46)
- A 8, (.31)
- B1 36, (1.42)
- B3 32, (1.26)
- B2 44, (1.73)
- Manufacturers part number 320evts
- H1 58, (2.28)
- L1~ 152, (5.98)
- H2 15, (.59)
- D1 thread M6 x 1.0
- D2 6.5, (.26)
- Max holding capacity 3200 n
- W2~ adjustment length 21, (.83)
- Size ref Size 320
- Series Gn 851.2
- Type Open twin-arm
- L2 min. 6, (.24)
- W1 stroke 53, (2.09)
