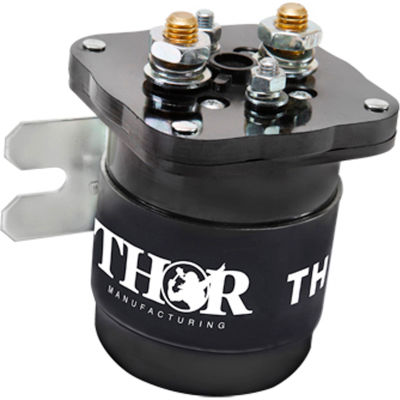

Thor thi-80, 80-amp battery isolator relay thi series battery isolators can be used to isolate circuits or batteries .These battery isolators are simple to install, take up less room, and are more durable than standard battery isolators. They require less than 1 amp to operate. Take your pick of one of our 80 amp, 200 amp or 500 amp model.
- The relay will handle 80 amperes on a continuous basis at 12 vdc and 150 amperes in rush peak or surge
- Mount the relay between batteries as an isolator or in the main power lead servicing the power inverter, mobile audio system, amplifiers, light bars or any other equipment requiring on/off control
- Design features:
- More flexible than traditional battery isolators smaller and lighter than traditional isolator allow bi-directions charging from alternator or shore power works with all types of alternators no efficiency losses due to diodes specifications:
- Dc input voltage 10-16 vdc
- Brand Thor
- Description 80 amp battery isolator
- Manufacturers part number Thi-80
- Ac amps 80 a
- Width 2 in
- Height 3 in
- Weight 3 lbs
- Length 2 in
- Handles 80-amps continuous and 150-amp surges durable weatherproof construction for switching power sources and systems with heavy current draw keeps primary starting battery from being drained does not create any voltage drop to the secondary battery power inverter relay and battery isolator great for isolating a second battery making it dedicated to the power inverter applications:
- Rvs and campers long haul trucks boats mobile office service vehicles emergency back-up power utility trucks
