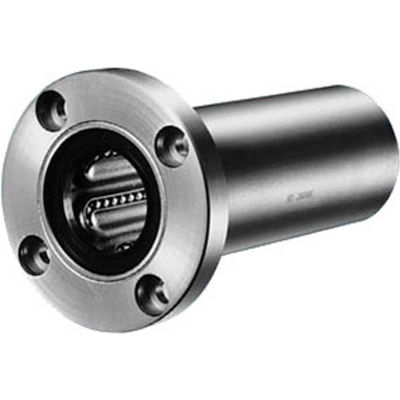

Nb corp swsf8gwuu 1/2" id round flange double-wide type linear bearing w/resin retainer & seals the slide bush is a linear motion mechanism that uses recirculating ball elements to achieve smooth motion and low friction.
- Id 1/2
- L 2.375
- D tolerance 0-0.00065"
- Description Round flange double-wide type linear bearing w/resin retainer & seals
- Df 1.75"
- Flange p.C.D. 1.312"
- Dr 0.5"
- X x y x z .1875" x .2969" x .1719"
- T .25"
- Dynamic load lbs. 182.76
- Number of ball circuits 4
- D 0.875"
- Dr tolerance 0-0.0004"
- Brand Nb corporation
- Material Stainless steel
- Manufacturers part number Swsf8gwuu
- Static load lbs. 352.95
