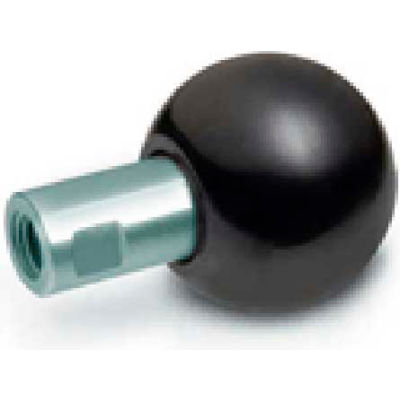

J.W. Winco gn319.2 phenolic revolving ball knob w/long shoulder tapped 25mm dia. 37.5mm l m6x1.0 gn 319.2 tapped shoulder type revolving ball knobs can be utilized instead of other revolving handles i.E.
- With handwheels
- The tapped shoulder allows the revolving ball knob to be mounted from the underside via a screw or bolt, which can then be easily mounted to sheet metal in a variety of thicknesses, flat bar, or castings, to create a quick cranking or turning mechanism
- Maximum heat resistance: 110°c (230°f).
- Material Phenolic plastic
- Brand J.W
- Winco
- D4 mm 10
- Thread M6 x 1.0
- Length 37.5
- Series Gn319.2
- D4 inches 0.39
- D2 thread M6 x 1.0
- L2 mm 37.5
- A/f mm 8
- L2 inches 1.48
- A/f inches 0.31
- L3 mm 15
- L3 inches 0.59
- Type Tapped
- D1 mm 25
- D1 inches 0.98
- Manufacturers part number 319.2-25-m6-b
- T min
- Inches 0.39
- Diameter 25
- T min
- Mm 10
- Description Revolving ball knob w/ long shoulder
