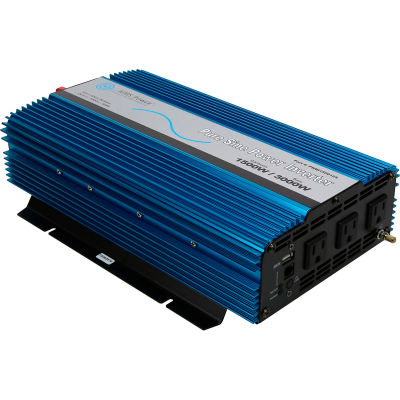

Aims power 1500 watt 12 volt pure sine inverter aims power has a wide variety of pure sine inverters; this unit is the 1500 watt 12 volt pure sine inverter for continuous power features:
- 15 volt dc input pure sine wave usb port triple ac receptacles on/off switch over temperature indicator overload protection low battery voltage warning/shutdown high input voltage protection with automatic shutdown over load indicator short circuit protection dual cooling fans thermally controlled ac output short circuit protection instruction manual free 1 year tech support 1 year warranty parts and labor elt listed to ul 458 specifications:
- Dc input voltage 9.5-16 vdc
- Description 1500 watt 12 volt pure sine inverter
- Outlet socket type Triple outlets
- Internal fuse protection Yes
- Ac amps 12.5 a
- Surge watts 3000 w
- Dc amps 125 a
- Brand Aims power
- Continuous output power 1500 w
- No load current .8 amps a
- Manufacturers part number Pwri150012120s
- Output voltage 120 vac v
- Width 8.375 in
- Length 15.875 in
- Height 3.875 in
- Weight 10 lbs
- Continuous output power 1500 watts surge power 3000 watts input voltage range 9.5-16v output voltage 120v dc input 12v output wave form pure sine wave 60hz (thd ?3%)\ efficiency 90% usb output 5vdc, max, 1a input over-voltage shutdown 16 � 0.5vdc input under-voltage shutdown 9.5 � 0.5vdc input under-voltage alarm 9.8 � 0.3vdc over temperature protection 149 � 8°f over-load protection 1700w � 200w no load consumption 0.8a working temperature 32-104°f storage temperature 14-113°f intelligent cooling (the cooling fan will start running when the case temperature reaches 104°f) dimension (l x w x h) 15.875 x 8.375 x 3.875 in. Unit weight 10 lbs shipping weight 12 lbs remote port for optional remote
