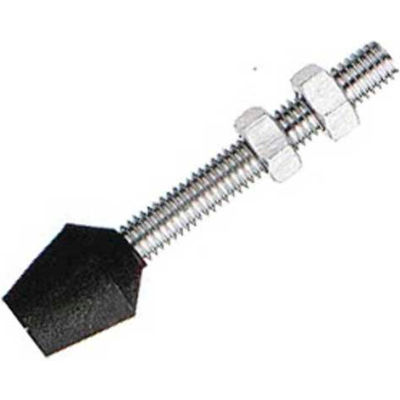

J.W. Winco, gn831.1 toggle latch, 110engk, size 110, steel features:
- Toggle latch assembly steel version: zinc-plated steel blue passivated finish stainless steel version: stainless steel european standard no. 1.4301 (american standard series 304)
- Description Toggle latch
- Material Steel
- Brand J.W.
- Winco
- W1~ hub stroke 16, (.63)
- R~ 63, (2.48)
- W2 adjustment range 12, (.47)
- M1 8, (.32)
- M3 5.5, (.22)
- M2 36, (1.42)
- M4 15, (.59)
- B5 37, (1.46)
- B4 35, (1.38)
- B7 36, (1.42)
- B6 19, (.75)
- B1 30, (1.18)
- B3 52, (2.05)
- B2 24, (.94)
- Manufacturers part number 110engk
- H2 13, (.51)
- D1 5.2, (.21)
- L1 min. 140, (5.51)
- D2 4.2, (.17)
- H1~ 22, (.87)
- Max holding capacity 1100 n
- Size ref Size 110
- Series Gn 831.1
- L2 51, (2.01)
- Type Standard
- L3 min. 78, (3.07)
