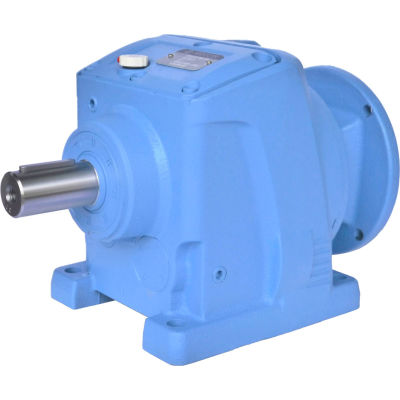

Worldwide electric winl47-30/1-182/4tc, helical inline speed reducer, 182/4tc input flange, 30:1 ratio cast-iron, helical inline speed reducers are available in box sizes 37-147 to support 1/4 hp to 100 hp nema frame motors in speed ratio's from 2:1 to 120:1. The units have nema motor quill style input flanges and solid output shafts, come pre-filled with mineral oil and have a 2 year warranty. Special features include ball bearings on the input and output shafts and precision ground gears for better rotation and quieter operation.
- Output speed (rpm) 55
- Overhung load lbs. 835
- Max input hp 2.73
- Max torque (in-lbs.) 2830
- Box size 47
- Cross reference Sew r47
- Manufacturers part number Winl47-30/1-182/4tc
- Brand Worldwide electric corporation
- Nema frame 182/4tc
- Gear ratio 30:1
- Actual gear ratio 31.83
- Gear stages 3
