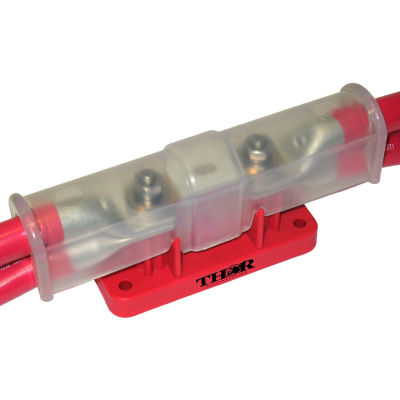

Thor thanlfb-100, 100 amp anl fuse with block thor anl fuse kit assemblies are designed to provide code compliant over-current protection. They are used to protect the battery bank, inverter and cables from damage caused by short circuits and overloads. Each fuse block assembly uses a fast acting current limiting fuse cartridge which provides instantaneous protection in the event of a short circuit, but also employs a time delay to allow momentary current surges common in inverter applications.
- A rugged injection molded poly carbonate base and thermoformed abs cover provides durability, easy installation, and good looks all in a compact, cost effective package
- Features
- Highly cost effective solutions for 80 - 300 amp fusing multiple fuse amperage available fuse holder amperage: 300 amps @ 48 vdc for fuses over 300 amp, thor recommends our hi-amp anl fuse holder fuses rated at 32 vdc
- Holder max voltage: 48 vdc anl fuse kit includes fuse holder and two (2) terminal insulators, hardware and clear center cover included terminal insulators protect conductive areas from accidental shorts, complying with abyc / uscg requirements connection post material : stainless steel base material: glass filled nylon connection post: stainless steel lock washer: stainless steel flat washer: brass applications: rvs and campers long haul trucks boats mobile office service vehicles emergency back-up power utility trucks
Product details
- Brand Thor
- Cover material Thermoformed abs
- Description Thor anl 100 amp fuse with block
- Base material Molded polycarbonate
- Manufacturers part number Thanlfb-100
- Fuse type Fast acting, current limiting fuse cartridge
Weights & dimensions
- Width 1 in
- Height 1 in
- Weight 1 lbs
- Length 3 in
