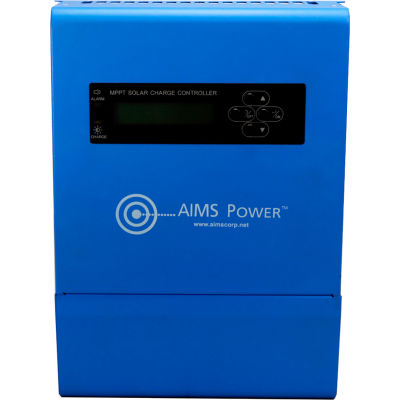

Aims power 40 amp solar charge controller this solar battery charge controller by aims power features a smart tracking algorithm using mppt charging technology and has less power loss performing at 97.5-99% efficiency, maximizing energy harvest. The tracking algorithm is automatic and varies with weather conditions. This charge controller also has temperature compensation protection using the included battery temperature sensor.
- Charges 12, 24, 36 and 48 volt solar systems with multistage charging technology and adjusts according to battery type
- The aims charge controller includes led indicators to show charging status and faults
- An lcd displays key information such as battery voltage, solar panel voltage, solar panel charging current and charge mode
- Users are able to revise and set the default parameters according to system design
- Mppt technology: maximum power point tracking produces maximum available power from pv array to battery bank utilizing peak power of the i-v curve
- Features:
- Quality heatsink cooling � no fans needed and no thermal derating battery type selector and user defined charging voltage pv input, battery output and load control ports stackable reliable electronics, over engineered components generating less heat low self consumption optimal cooling case design built for extreme conditions over temp protection overload, short circuit, high and low voltage protection rs485 port for computer monitoring conformal coated for marine environments protections: overload, short circuit, high voltage, high temperature, low voltage and auto correct mounting holes specifications:
- Suggested add on Pv60slim, pv120slim, pv60case, pv120case
- Dc input voltage 12/24/36/48vdc
- Brand Aims power
- Description 40 amp solar charge controller
- Internal fuse protection Yes
- Manufacturers part number Scc40amppt
- Dc amps 40 a
- Certifications Etl to ul1741, ce, rohs
- Width 8-1/4 in
- Height 3-3/4 in
- Weight 8.6 lbs
- Length 11 in
- Pv operating voltage: 15-150vdc@12v, 34-150vdc@24v, 50-150vdc@36v, 60-150vdc@48v rated pv input: 12v � 500 watts, 24v � 1000 watts, 36v � 1500 watts, 48v � 2000 watts maximum battery current: 40 amps max pv open circuit vo
