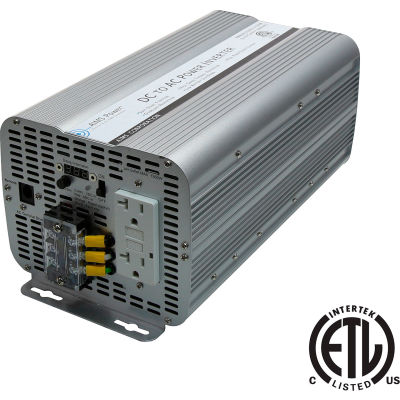

Aims power, 3600 watt power inverter this 3600 watt modified sine inverter has a few unique features. First, the unit is etl listed and conforms to ul 458 standards. The aims 3600 watt also conforms to csa standard c22.2 no.
- 107.1-01
- Canada
- At aims power, we listen to our customers and as a result, aims designed this 3600 watt ul listed modified sine inverter with our customers in mind
- Aims has produced a high quality unit that is also available in two other sizes 2000 and 3000 watts
- It features a 20 amp gfci outlet
- That is exactly like the outlets you find in your bathroom and are able to be reset if they "pop" for safety
- This inverter also has a direct connect ac terminal block, which delivers the full 3600 watts to a single source
- The compact design is lightweight and durable, taking up less space in your work environment
- Ideal for back-up power systems for homes, boats, cabins, solar, vehicle outfitters and other oem type applications that require a ul 458 listing
- Aims offers several ul products
- Features:
- 3600w max continuous power modified sine wave digital display led monitoring lights dual gfci outlet ac direct connect terminal block over temperature protection over load protection thermal cooling fan operation internally fuse protected ac output short circuit protection aluminum case for optimal cooling pre-slotted mounting plate instruction manual free tech support 2 year warranty parts and labor specifications:
- Suggested add on Remotehf
- Dc input voltage 10-15 vdc
- Description 3600 watt power inverter
- Outlet socket type Dual gfci and ac direct connect terminal
- Internal fuse protection Yes
- Ac amps 30 a
- Surge watts 7200 w
- Dc amps 300 a
- Brand Aims power
- Continuous output power 3600 w
- No load current ≪2.0a a
- Manufacturers part number Pwrinv360012120w
- Output voltage 120 vac v
- Width 2-3/4 in
- Length 14-1/2 in
- Height 5-39/64 in
- Weight 9.04 lbs
- Certifications Etl certified conforms to ul458 standards
- Surge power capability (peak power): 7200 watts dc input / operating voltage: 10 to 15 volts output voltage: 120 volts ac output frequency: 60 hz +/1 .5 hz battery low voltage alarm: 10.5 +/- 0.5 volts battery low voltage shutdown: 10.0 +/- 0.5 v no load minimum operating temperature: 25° f full load maximum operating temperature: 140° f (automatic shutdown) effi
