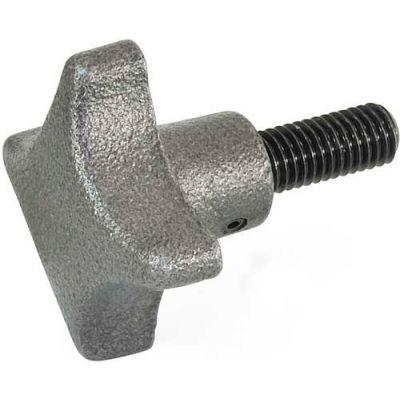

J.W. Winco gn6335.4-sg star knob, 32"(1.26), 20", 6335.4-sg-32-m6-20 cast iron star knobs with male thread increase the range of clamping applications. Mainly used in clamping applications requiring heavier force and durability.
- Recommended when clamping with the hub face is necessary
- Special inch and metric size threaded studs and stud lengths available upon request.
- Material Aluminum
- Brand J.W
- Winco
- D3 12mm(.47")
- H1 20mm(.79")
- Series Gn6335.4-sg
- D2 thread M6 x 1.0
- L stud length 20 mm
- Type Star hand knob
- Finish Matte
- H2 10mm(.39")
- Manufacturers part number 6335.4-sg-32-m6-20
- Hole size / thread M6 x 1.0
- D1 32mm(1.26")
- Knob diameter 1.26"
