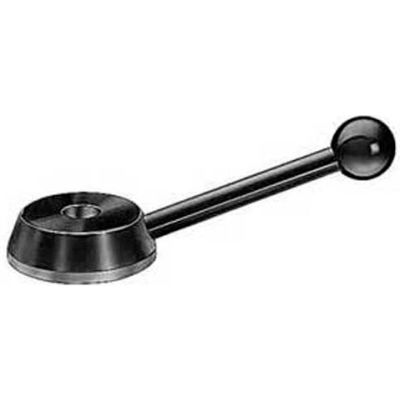

J.W. Winco gn750 steel control lever w/ through bore 50mm d 130mm l 16mm bore the cylindrical shape of the hub together with the light gray cover give these control levers gn 750 a pleasing appearance. The cover hides fasteners (click here for assembly instructions) and provides a printing area for any symbols or logos.
- On assembly, the cover is pushed in by hand and can be removed with a screwdriver via a slot in the cover
- Special inch and metric bore sizes larger than listed are available upon request
- Modifications such as threads, squares and keyways are also available.
- Material Steel
- Brand J.W
- Winco
- Bore 16
- D2 thru bore mm 16
- D2 thru bore inches 0.63
- Series Gn750
- Manufacturers part number 16ma91/n
- L mm 130
- L inches 5.12
- H3 mm 3.8
- Diameter 50
- H3 inches 0.15
- Description Control lever
- H1 mm 28
- H1 inches 1.1
- H2 mm 22
- H2 inches 0.87
- D4 mm 37.5
- Length 130
- D4 inches 1.48
- D5 mm 23
- D5 inches 0.91
- D6 mm 11
- D6 inches 0.43
- Type Through bore
- D1 mm 50
- D1 inches 1.97
- D3 mm 40
- D3 inches 1.57
