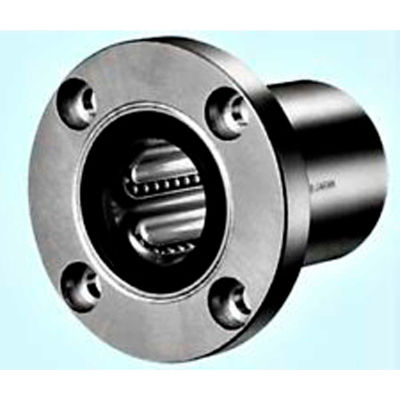

Nb corp swf24guu 1-1/2" id round flange type linear bearing w/resin retainer & seals, steel the slide bush is a linear motion mechanism that uses recirculating ball elements to achieve smooth motion and low friction.
- Id 1-1/2
- L 3
- D tolerance 0-0.0009"
- Description Round flange type linear bearing w/resin retainer & seals
- Df 3.75"
- Flange p.C.D. 3.0625"
- Dr 1.5"
- X x y x z .3440" x .50" x .3280"
- T .5"
- Dynamic load lbs. 490.08
- Number of ball circuits 6
- D 2.375"
- Dr tolerance 0-0.0005"
- Brand Nb corporation
- Material Steel
- Manufacturers part number Swf24guu
- Static load lbs. 903.73
