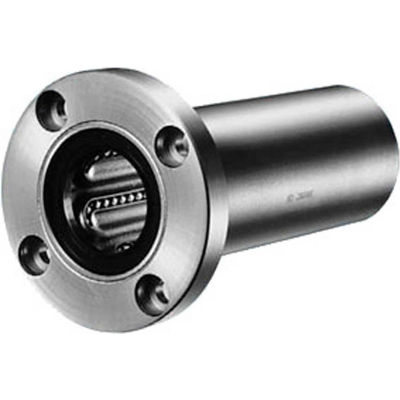

Nb corp swf32gwuu 2" id round flange double-wide type linear bearing w/resin retainer & seals, steel the slide bush is a linear motion mechanism that uses recirculating ball elements to achieve smooth motion and low friction.
- Id 2
- L 7.75
- D tolerance 0-0.00100"
- Description Round flange double-wide type linear bearing w/resin retainer & seals
- Df 4.375"
- Flange p.C.D. 3.6875"
- Dr 2"
- X x y x z .3437" x .50" x .3281"
- Dynamic load lbs. 1366.83
- Number of ball circuits 6
- T .5"
- D 3"
- Dr tolerance 0-0.0006"
- Brand Nb corporation
- Material Steel
- Manufacturers part number Swf32gwuu
- Static load lbs. 3574.46
