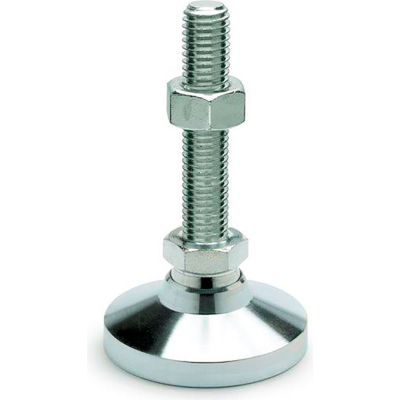

Gn 343.2 steel leveling feet feature a threaded stud and are designed to handle high static loads. The static load capacity of gn 343.2 leveling feet results from the permissible load capacity of the threaded stud (property class 5.8). Leveling feet are without cap.
- Leveling foot base length inches is 1.42" and static load kilonewtons are 95.
- Color finish Silver
- Base diameter 2.36"
- Brand J.W
- Winco
- Construction Steel
- Description Leveling feet without cap
- Finish Zinc plated
- Manufacturers part number 20n138m84
- Package quantity 1
- Country of origin Import
- Stud length 5.43"
- Series Gn343.2
- Load capacity (lbs.) 21357 lbs.
- Thread M20 x 2.5
- Unit of measurement Inch (imperial)
- Nut size 0.94"
