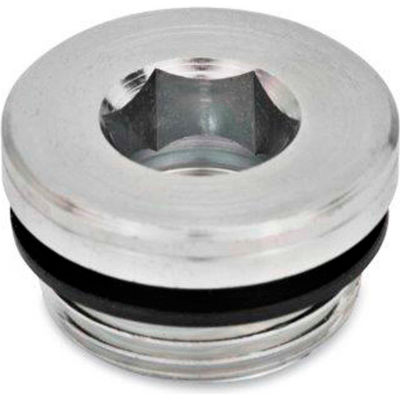

Gn 749 threaded pipe plugs seal is retained in a groove undercut in the mating face, which prevents it from dropping out and from extruding when the plug is tightened. For this reason the seal can be of a softer material which offers better sealing.
- Finish Zinc plated
- Outer diameter 1-3/16"
- Type Threaded pipe plug
- Grade Class 5.8
- Unit of measurement Inch (imperial)
- Package quantity 1
- Country of origin Import
- Color finish Silver
- Material Steel
- Torque 21.36 lbf
- Hex key size 1/2"
- Series Gn749
- Body construction Steel, zinc plated
- Thread length 9/16"
- Brand J.W. Winco
- Manufacturers part number 749-m24x1.5-a
- Height 3/4"
- Thread (d1) M 24 x 1.5
