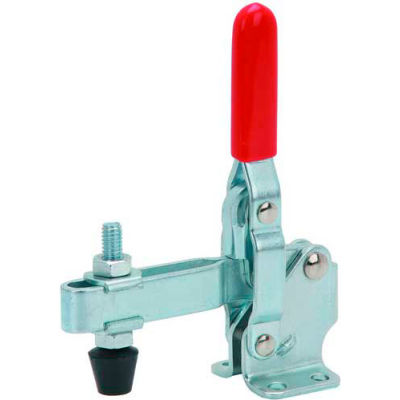

J.W. Winco, 13005 vertical acting toggle clamp, jw-13005, horizontal base, sheet metal steel features:
- Sheet metal steel zinc plated red vinyl hand grip handle moves 175° bar 92° neoprene tipped spindle assembly - jw-fc series
- Description Toggle clamp
- Weight lbs 0.13
- Material Sheet metal steel
- Brand J.W. Winco
- Base type Horizontal
- Style Vertical
- Manufacturers part number Jw-13005
- Dimension e 1-1/32
- Dimension d 17/32
- Dimension h 2-1/4
- Dimension f 1-3/8
- Dimension k 11/64
- Dimension g 1/2
- Dimension a 1-7/16
- Dimension c 1
- Dimension b 5/8
- Max holding capacity 150 lbs
- Series 13005
- Type T-handle
