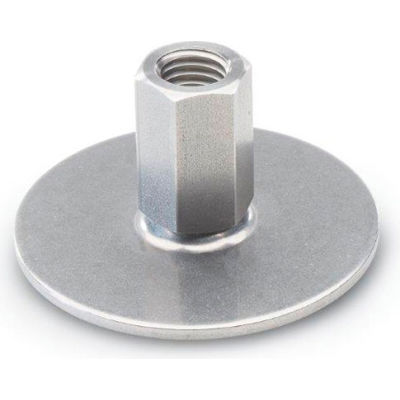

Leveling foot - tapped - 4500 lbs. Capacity - 3.15" base dia. - J.W.
- Winco 41-80-3/4x10-45-d0-x gn 41 leveling feet are simple, economically priced components
- The static load rating of these feet is limited due to the acceptable load rating of the stud (tensile strength 500/mm2)
- The values given in the table assume a straight compressive load, perpendicular to the foot
- The bending and buckling stress factors often found in the actual application reduce the load rating of the stud, and must be compensated for accordingly.
- Base diameter 3.15"
- Base height 1.77"
- Brand J.W
- Winco
- Construction Stainless steel
- Description Leveling foot
- Manufacturers part number 41-80-3/4x10-45-d0-x
- Type Tapped
- Stud length --
- Country of origin Import
- Series Gn41
- Load capacity (lbs.) 4500 lbs.
- Thread 3/4-10
- Load capacity range (lbs.) 2500 - 5000 lbs.
- Unit of measurement Inch (imperial)
- Threaded stud & hex nut Stainless steel
