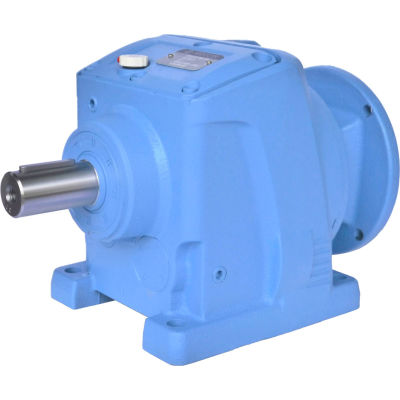

Worldwide electric winl87-10/1-254tc, helical inline speed reducer, 254tc input flange, 10:1 ratio cast-iron, helical inline speed reducers are available in box sizes 37-147 to support 1/4 hp to 100 hp nema frame motors in speed ratio's from 2:1 to 120:1. The units have nema motor quill style input flanges and solid output shafts, come pre-filled with mineral oil and have a 2 year warranty. Special features include ball bearings on the input and output shafts and precision ground gears for better rotation and quieter operation.
- Output speed (rpm) 164
- Overhung load lbs. 2375
- Max input hp 27.28
- Max torque (in-lbs.) 9790
- Box size 87
- Cross reference Sew r87
- Manufacturers part number Winl87-10/1-254tc
- Brand Worldwide electric corporation
- Nema frame 254tc
- Gear ratio 10:1
- Actual gear ratio 10.66
- Gear stages 2
