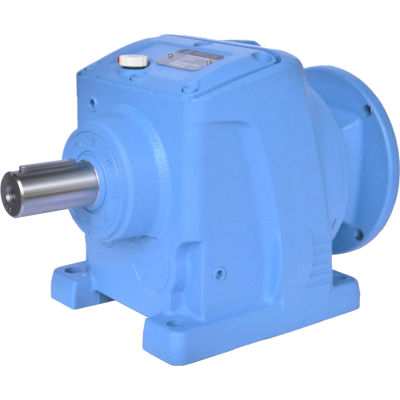

Worldwide electric winl107-15/1-254/6tc, helical inline speed reducer, 254/6tc input flange, 15:1 ratio cast-iron, helical inline speed reducers are available in box sizes 37-147 to support 1/4 hp to 100 hp nema frame motors in speed ratio's from 2:1 to 120:1. The units have nema motor quill style input flanges and solid output shafts, come pre-filled with mineral oil and have a 2 year warranty. Special features include ball bearings on the input and output shafts and precision ground gears for better rotation and quieter operation.
- Output speed (rpm) 122
- Overhung load lbs. 3076
- Max input hp 34
- Max torque (in-lbs.) 15991
- Box size 107
- Cross reference Sew r107
- Manufacturers part number Winl107-15/1-254/6tc
- Brand Worldwide electric corporation
- Nema frame 254/6tc
- Gear ratio 15:1
- Actual gear ratio 14.38
- Gear stages 2
