Product Details

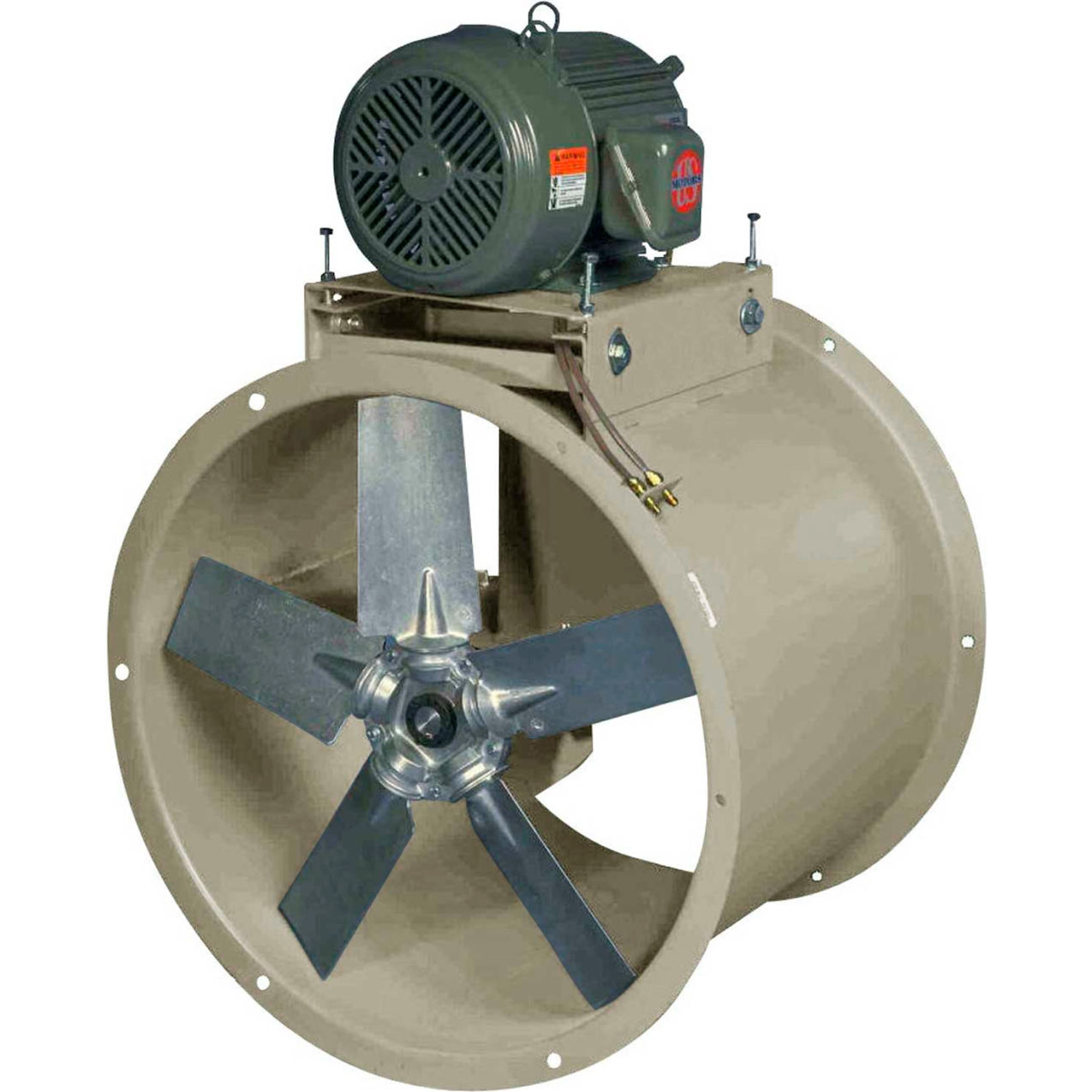

The Canarm 24" three phase belt drive tube axial duct fan HTA24T30075M operates at 3/4 hp and delivers 6750 cfm, designed specifically for duct-connected applications such as paint booth exhaust, air make-up fans, or general exhaust. The HTA series features an adjustable motor base and heavy-duty pillow block ball bearings lubricated with high-temperature grease, supported by extended lube lines with external grease fittings. The fan includes a TEFC motor as standard, and the 24" model is equipped with cast aluminum blades, while models measuring 48", 54", and 60" use polypropylene reinforced fiberglass blades. The HTA models are finished with beige high heat paint and are recommended for clean, dry air applications with a maximum temperature of 375°F. The package includes the fan with these specified features and construction. The product comes with a warranty consistent with Canarm's standard terms.
