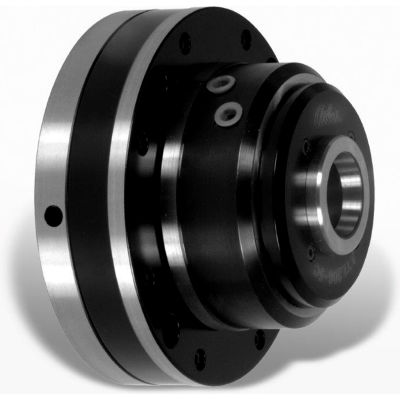

5c air powered front mount dead length collet chuck - d3 mount - pratt burnerd atl206-5cd3 features:
- No hydraulic system required no draw tube or air feed tubes restricting spindle bore no rear cylinders and cylinder adapters easily convert any lathe or grinder into a production machine ideal for rotary table applications change from collet chuck to standard chuck quick and easy high speed 4000 rpm high accuracy less then .001" tir repeats on duplicate parts plus minus .00015" dead length design lever or foot pedal actuated low maintenance with oil mist lubrication system high resistance to coolant and chip penetration uses 5c collets, range 1/64" (.5mm) to 1-1/8" (27mm)
- Description Air powered front mount dead length collet chuck
- Brand Pratt burnerd
- Type 5c collet chuck
- Style Air power
- Series Fmsc
- Number of pieces 1
- Chuck diameter 6.61"
- Max rpm 4000
- Mount D3
- Through hole 1.02"
- Manufacturers part number Atl206-5cd3
- Manufacturer's warranty 1 year
