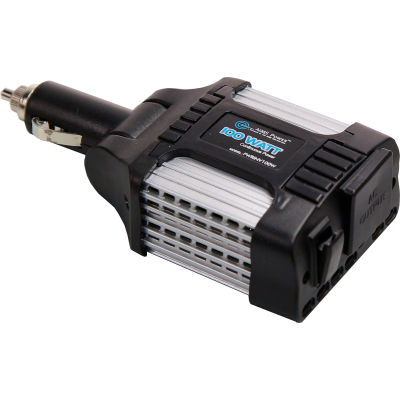

Aims power 100 watt power inverter features:
- Converts 12vdc power from vehicle cigarette lighter socket to 120 vac power 100 watts continuous 140 watts max output single ac outlet 2.1a 5 volt usb outlet led power indicator fan lightweight design over temperature shutdown low battery shutdown high battery shutdown over load protection input short circuit protection specifications:
- Dc input voltage 10-15 vdc
- Description 100 watt power inverter
- Outlet socket type Single ac outlet
- Internal fuse protection Yes
- Ac amps 0.83 a
- Surge watts 140 w
- Dc amps 8.3 a
- Brand Aims power
- Continuous output power 100 w
- No load current .7 amps a
- Manufacturers part number Pwrinv100w
- Output voltage 120 vac v
- Width 2-3/4 in
- Length 5-1/2 in
- Height 1-1/2 in
- Weight 0.04 lbs
- Ac output power 120v wave form modified sine wave dc input voltage 10-15v low battery shutdown 9.5v +/- 0.5v high battery shutdown 15v frequency 60hz no load current draw - <0.7amps over temp protection-140° f dimensions (lxwxh)-5.5" x 2.75" x 1.5" unit weight-0.4 lbs.-Ship weight-1 lb
