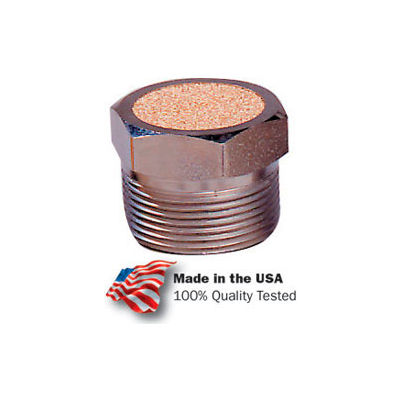

Arrow asp1bv, pneumatic breather vent, sintered bronze, 40 micron, 1/8" npt, 150 psi arrow pneumatics sintered bronze breather vent - these breather vents have many applications, including vacuum relief or pressure equalization on gear boxes, oil tanks or reservoirs. Common uses can be found on single acting cylinders to prevent dirt and foreign particles from entering ports open to the atmosphere. Units have a nickel plated steel insert.
- All have standard pipe thread fittings for quick assembly and removal for cleaning
- The filter element within the standard breather vent is rated for 40 micron filtration and can also be obtained with 20 or 90 micron filtration on special order
- Features & benefits:
- 1/8" npt sintered bronze 40 micron breather vent 150 psi max operating temperature range 35°f � 300°f
- Brand Arrow pneumatics
- Manufacturers part number Asp1bv
- Color finish Gold
- Type Breather vent
- Width inches 7/16
- Height inches 7/16
- Weight lbs 0.01
- Micron rating 40
- Description Breather vent
- Npt outlet inches 1/8
- Construction Sintered bronze
- Savings Everyday low price
- Psi 150
- Temperature range°f 35 to 300
