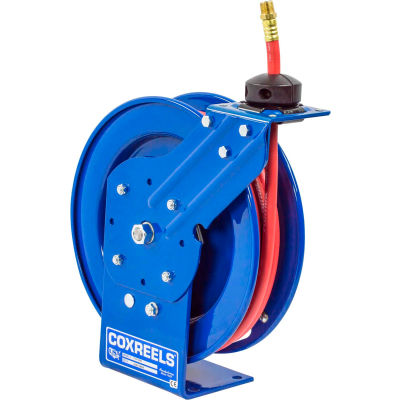

Coxreels p-lp-325 3/8"x25' 300 psi spring retractable low pressure hose reel coxreels® p series "performance" spring driven hose reels have a long history of dependability and trouble free performance. Their compact space-saving size and heavy duty construction make them highly versatile and virtually indestructible. Time-tested proven components, superior design and craftsmanship have contributed to it's worldwide reputation as the most trusted hose reel.
- External fluid path with machined from solid brass 90° full-flow npt swivel inlet
- Swivel seals: nitrile sturdy single pedestal reel with space saving design facilitates workplace organization
- Guide arm adjusts to wall, floor, vehicle & overhead positions
- Solid one piece, heavy gauge 1/4" steel base and support post for maximum stability
- 1" solid steel axle and lubricated precision bearings for smooth rotation
- Enclosed factory tuned and matched cartridge-style spring motor
- Non-corrosive stainless steel spring, pawl and zinc plated ratchet
- Multi-position lock ratchet mechanism secures hose at desired length
- Features:
- Professional grade heavy duty steel construction
- Durable proprietary cpc™ powder coat process
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer's limited warranty
- Made in the u.S.A
- - Sold & supported worldwide swivel - machined from solid brass 90° full-flow npt swivel for simple seal maintenance and fast and easy hose installation
- No need to remove the reel from its mount
- Cartridge motor - lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance
- Cnc spun discs - heavy duty cnc robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety
- 1/4" steel base - sturdy single pedestal design with solid one piece steel base and support post, no weld, f
- Length inches 13-1/2
- Width inches 6-1/4
- Height inches 14-7/8
- Series P
- Weight lbs 28
- Application Air,water,chemical
- Cable/cord/hose included Yes
- Style Open chassis
- Drive / return type Spring return
- Temperature range°f -15 to 150
- Hose/ cord length feet 25
- Psi 300
- Reel hose length capacity (feet) 25
- Manufacturers part number P-lp-325
- Open or enclosed chassis Open
- Hose id" 3/8
- Manufacturers limited warranty years 2
- Color finish Blue
- Construction Steel
- Max
- Temperature°f 150
- Inlet 3/8"
- Type Hose reel
- Brand Coxreels
- Hose material Pvc
