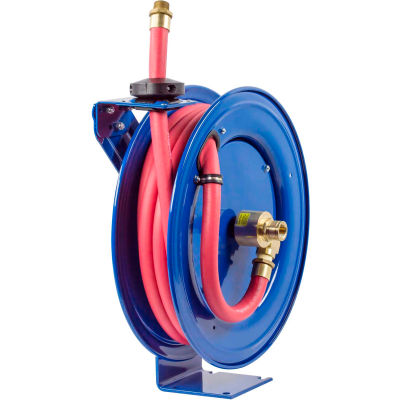

Coxreels shf-n-525 3/4"x25' 300 psi spring retractable fuel delivery steel hose reel coxreels® sh series "super hub™" spring driven hose reels, like the p series, have a long history of dependable performance. The larger chassis and frame accommodate longer lengths and larger diameters of hose. Coxreels' original super hub™ dual axle support system increases the stability during operation, reduces vibration and strengthens the structural integrity of the reel.
- Machined from solid brass 90° full-flow npt swivel inlet for fuel dispensing applications
- Electroless nickel plated steel swivel on 1" models swivel seals: nitrile sturdy single pedestal reel features coxreels' exclusive super hub™ dual axle support system guide arm adjusts to wall, floor, vehicle & overhead positions solid one piece, heavy gauge 1/4" steel base & support post for maximum stability 1" solid steel axle & lubricated precision bearings for smooth rotation controlled retraction speed up to 80% slower on ez-coil® models pawl & zinc plated ratchet
- Multi-position lock ratchet mechanism secures hose at desired length features:
- Professional grade heavy duty steel construction
- Durable proprietary cpc™ powder coat process
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer's limited warranty
- Made in the u.S.A
- - Sold & supported worldwide swivel - machined from solid brass 90° full-flow npt swivel for fuel dispensing applications
- Cartridge motor - lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- Cnc spun discs - heavy duty cnc robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety
- 1/4" steel base - sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability
- Exclusi
- Length inches 19-1/2
- Width inches 9-3/4
- Height inches 25-1/2
- Series Fuel hose sh
- Weight lbs 57
- Application Fuel
- Cable/cord/hose included Yes
- Drive / return type Spring return
- Temperature range°f -20 to 190
- Hose/ cord length feet 25
- Psi 300
- Reel hose length capacity (feet) 25
- Manufacturers part number Shf-n-525
- Open or enclosed chassis Open
- Hose id" 3/4
- Manufacturers limited warranty years 2
- Color finish Blue
- Max
- Temperature°f 190
- Construction Steel
- Inlet 3/4"
- Type Hose reel
- Brand Coxreels
- Reel hose/cable length capacity feet 25
- Hose material Carbryn rubber
