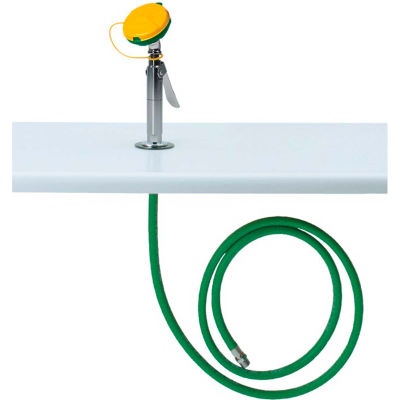

Haws® axion msr counter-mount eyewash station drench hose model 8904 counter-mounted eye/face wash and body spray shall include an axion®msr eye/face wash head which features an inverted directional laminar flow which achieves zero vertical velocity� supplied by an integral 3.7 gpm flow control. The unit shall also include a chrome plated brass stay-open squeeze lever valve, 8 foot (243.8 cm) 250 psi (17.2 bar) green hose with chrome-plated swivel fitting at one end, noryl plastic deck flange with integral key slot for proper positioning of unit, universal sign, and 1/2" npt inlet. In order to comply with state codes the use of a vacuum breaker is required with all hand held eye/face wash body spray units (haws offers model sp212)
- Brand Haws
- Description Haws® laboratory units, model 8904
- Color finish Green
- Construction Rubber/abs plastic
- Head diameter inches 2-1/4
- Activation Squeeze handle
- Eyewash handle material Chrome plated brass
- Flow rate (gpm) 6.25 gpm
- Ada compliant No
- Fitting material Chrome plated brass swivel
- Inlet size 1/2" ips inlet
- Pressure (psi) 250 psi
- Meets ansi Meets ansi z358.1-2014
- Valve type Chrome plated brass stay open
- Mount type Deck mounted
- Type Eye and face wash
- Manufacturers part number 8904
- Length inches 5
- Width inches 2
- Height inches 10-13/32
