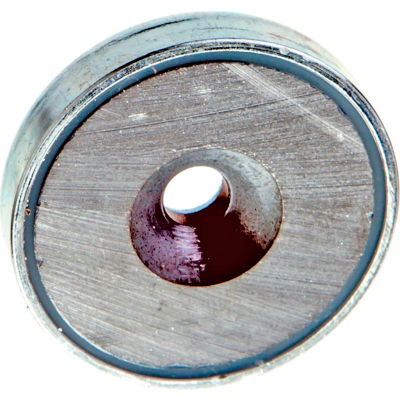

J.W. Winco 50.4-hf-32 retaining magnet assembly disc-shape w/ countersunk thru hole, 1.26" dia steel gn 50.4 magnets are a shielded magnetic assembly. To ensure that the magnetic forces are not impaired, the mounting screws must be made of non-magnetic material.
- Temperature resistant to 390°f (200°c),
- Countersunk screw head diameter inches (d4) 0.47
- Construction Zinc plated steel
- Body thickness inches (h) 0.28
- Type With countersunk thru hole
- Thru hole inches (d2) 0.22
- Diameter inches 1.26
- Brand J.W
- Winco
- Magnet contruction Hard ferrite srfe (hf type)
- Nominal pulling force 72 n
- Manufacturers part number 50.4-hf-32-7-5.5
